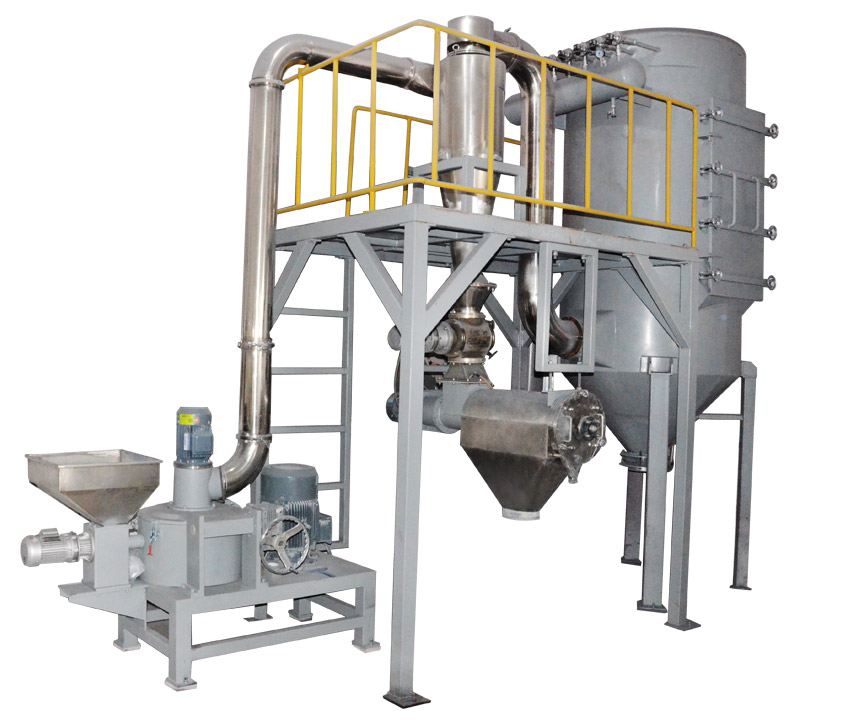

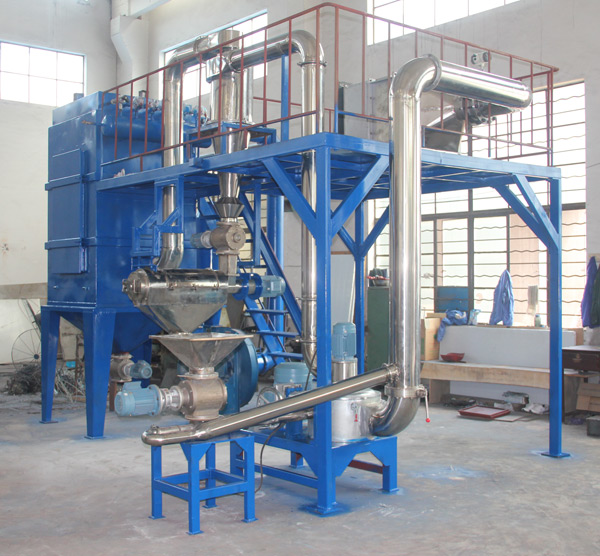

ACM Series Grinder
This series Grinding System is used in crushing, sieving and grinding chip materials. It consists of mill, cyclone, sieve, classifier, air lock, dust collection, electrical cabinet and Fan.
It is a main equipment to produce powder coatings , and it can also used to produce other product such as pigment ,calcium,carbonate, medicine ,food and so on .
Model | Output(kg/h) | Motor Power(kw) | Classifier Motor(kw) | Fan Power(kw) | Particle Size(mesh) | Total Power(kw) |
ACM-10 | 150-200 | 7.5 | 0.75 | 11 | 80-400 | 20.0 |
ACM-15 | 200-300 | 11 | 1.5 | 18.5 | 80-400 | 31.0 |
ACM-20 | 300-400 | 15 | 2.2 | 22 | 80-400 | 40.0 |
ACM-30 | 400-500 | 22 | 2.2 | 45 | 80-400 | 70.0 |
ACM-40 | 600-800 | 30 | 4.0 | 55 | 80-400 | 89.0 |
ACM-50 | 800-1000 | 37 | 5.5 | 75 | 80-400 | 118.0 |
