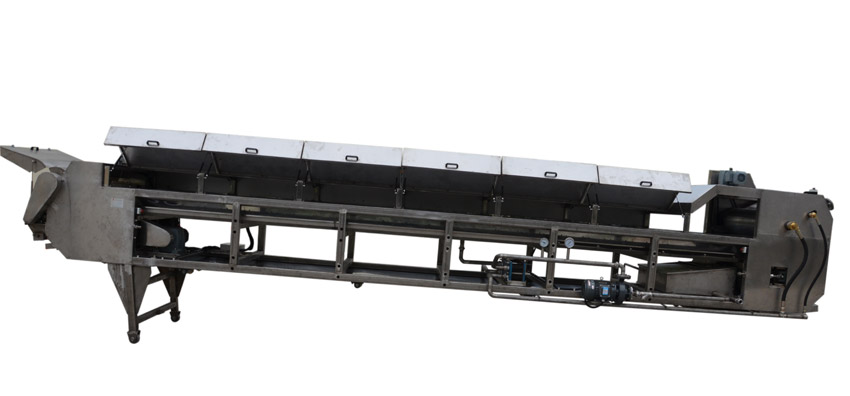

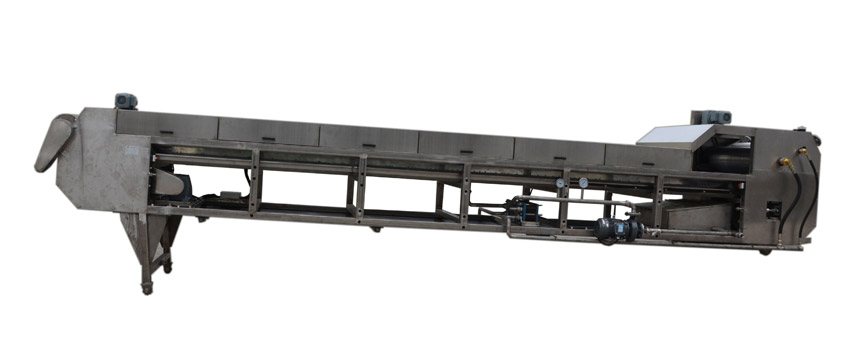

DWB Series Water Cooling Steel Belt
The stainless steel cooling belt adopt imported complete stainless steel Belt , two cooling rollers are connected to the chill water , the Stainless steel spray nozzle sparing water to the under surface of the Steel belt , guarantee enough cooling efficiency to the material. The frame are made from Stainless steel for easy cleaning with water . when melted material drops down to the gap of two rollers , it will be made into be sheeted at thickness of around 1-1.5 mm, then the melted material is cooled down and transformed to the crusher , the crushed chips size around 12 x 12 mm , falls down to the chip tank .
Attention : Temperature of cooling water should be ¨Q14 ¡æ
| Model | Output
(kg/h) | Belt Cooling Length
(mm) | Belt Width(mm) | Belt Motor (kw) | Roller motor(kw) | Crusher motor (kw) | Pump motor (kw) |
| DWB-502 | 40-60 | 2000 | 500 | 0.75 | 0.75 | 1.1 | 0.75 |
| DWB-504 | 100-150 | 4000 | 500 | 1.5 | 1.5 | 1.1 | 1.1 |
| DWB-1002 | 60-80 | 2000 | 1000 | 1.1 | 0.75 | 1.1 | 1.5 |
| DWB-1003 | 100-150 | 3000 | 1000 | 1.5 | 1.5 | 1.5 | 2.2 |
| DWB-1004 | 300-400 | 4000 | 1000 | 2.2 | 1.5 | 1.5 | 2.2 |
| DWB-1205 | 500-600 | 5000 | 1200 | 2.2 | 2.2 | 2.2 | 3.7 |
| DWB-1207 | 700-800 | 7000 | 1200 | 3.0 | 2.2 | 2.2 | 3.7 |
| DWB-1208 | 800-1000 | 8000 | 1200 | 3.0 | 2.2 | 2.2 | 3.7 |
| DWB-1508 | 1000-1300 | 8000 | 1500 | 4.0 | 3.0 | 3.0 | 4.0 |
