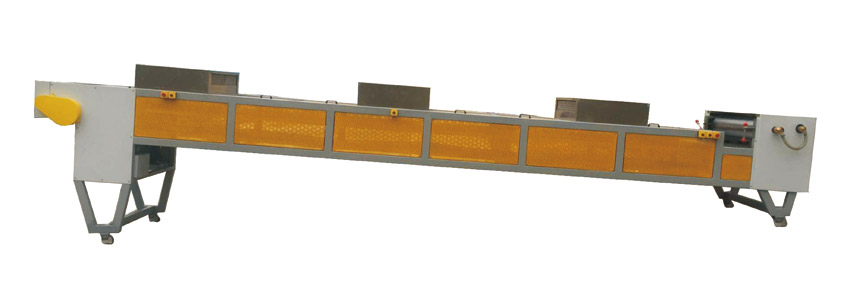

DAB Series Air Cooling Belt
The DAB Series air cooling steel belt use steel strip to transform the material from rollers to the crusher. Two rollers are connected to the chill water . when the material drops down from the extruder to the gap of the two rollers , it is sheeted to be 1-2mm thick flakes , and cooled down on the steel strip by air . the crusher crush the flakes to be chips ,size around 12 x 12 mm .
Character :
¡ô Steel strip transform the material , excellent seal
¡ô Water cooling rollers , material not stick to the roller surface.
¡ô Flakes thickness can be adjusted and roller speed can be adjust .
| Model | Output (kg/h) | Belt Length
(mm) | Belt Width
(mm) | Motor power(kW) | Roller Dia (mm) |
| DAB-504 | 100-120 | 3500 | 500 | 0.55 | 215/215 |
| DAB-1005 | 300-400 | 4500 | 1000 | 2.2 | 270/215 |
| DAB-1206 | 500-600 | 5500 | 1200 | 3.0 | 270/215 |
| DAB-1207 | 700-800 | 6500 | 1200 | 3.0 | 270/215 |
| DAB-1208 | 800-1000 | 7500 | 1200 | 4.4 | 270/215 |
